115 L Precision Linear Transducer
(Conductive Plastic, Up to 1000 mm Electric Stroke)

REC

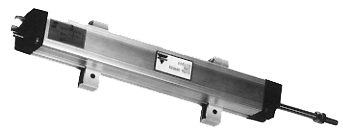

The 115 L is a simply mounted, robust high precision industrial linear motion transducer.


  115 L Precision Linear Transducer
  • MEASUREMENT RANGE
    25 mm to 1000 mm
  • HIGH ACCURACY
    ±1% down to ±0.025%
  • EXCELLENT REPEATABILITY
  • LONG LIFE
  • ESSENTIALLY INFINITE RESOLUTION
  • NOT SENSITIVE TO TEMPERATURE VARIATIONS

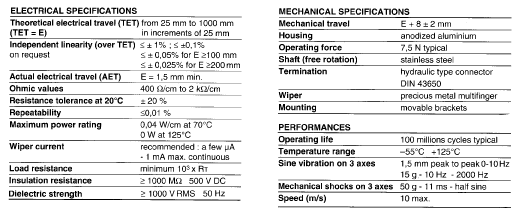

Electrical & Mechanical Specifications - Click To View Matching PDF

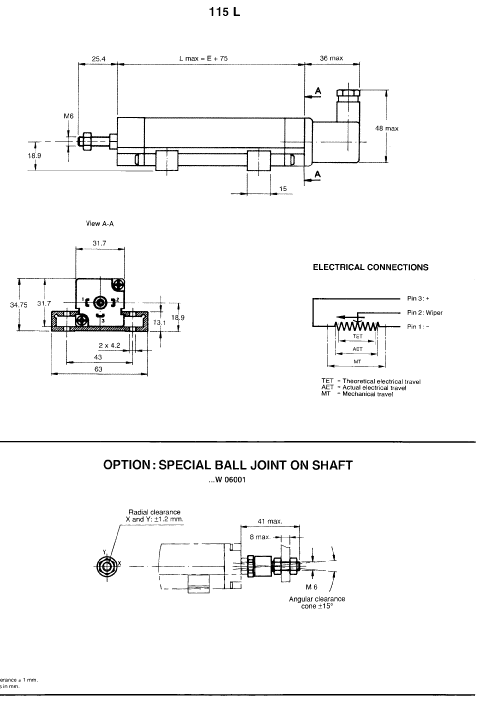

Dimensional Specifications - Click To View Matching PDF
